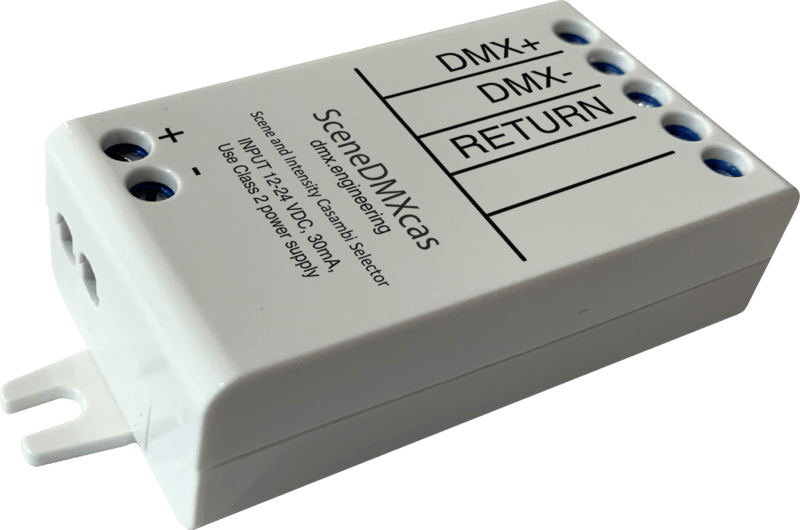

SceneDMXcas - DMX Casambi Scene Selector
SceneDMXcas is a Casambi “Gateway” device designed to utilize a connection to a standard DMX digital master controller to provide remote selection of pre-defined Casambi Scenes and Scene Intensity. Scene10cas is connected between a 12-24 VDC Class 2 power supply, and a DMX master universe.
SceneDMXcas decodes two DMX channels, and provides Scene selections by mapping the first DMX channel to up to 20 pre-defined Casambi Scenes. The second DMX channel provides 0-100% intensity selection for the selected Casambi Scene. The DMX Start Address for each SceneDMXcas is also user selectable.
