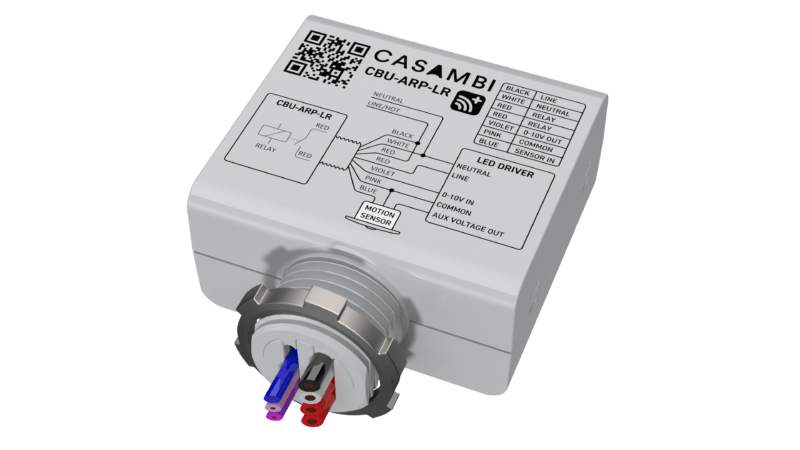

CBU-ARP-LR - Casambi Bluetooth 1ch 0-10v / DALI WITH RELAY

CBU-ARP-LR is a Bluetooth controlled, Casambi enabled one channel 0-10V controller with built-in 2.0 A relay and a motion sensor input.

CBU-ARP-LR is designed to control a single 0-10V LED driver. If the LED driver cannot be turned completely off from the 0-10V control interface, CBU-ARP-LR has a built-in 2.0 A relay for cutting the power from the driver. It also has a 12-24 VDC input for motion sensor. The sensor must be powered by an external power supply, such as mains voltage or auxiliary voltage from an LED driver.

The 0-10V output can also be configured as DALI interface which allows for much richer feature set, such as controlling multi-channel LED driver (up to five channels) and reading diagnostic information from the driver.CBU-ARP-LR can be controlled with Casambi app which can be downloaded free of charge from Apple App Store and Google Play Store. Different Casambi enabled products can be used from a simple one luminaire direct control to a complete and full featured light control system where up to 250 units form automatically an intelligent mesh network.
